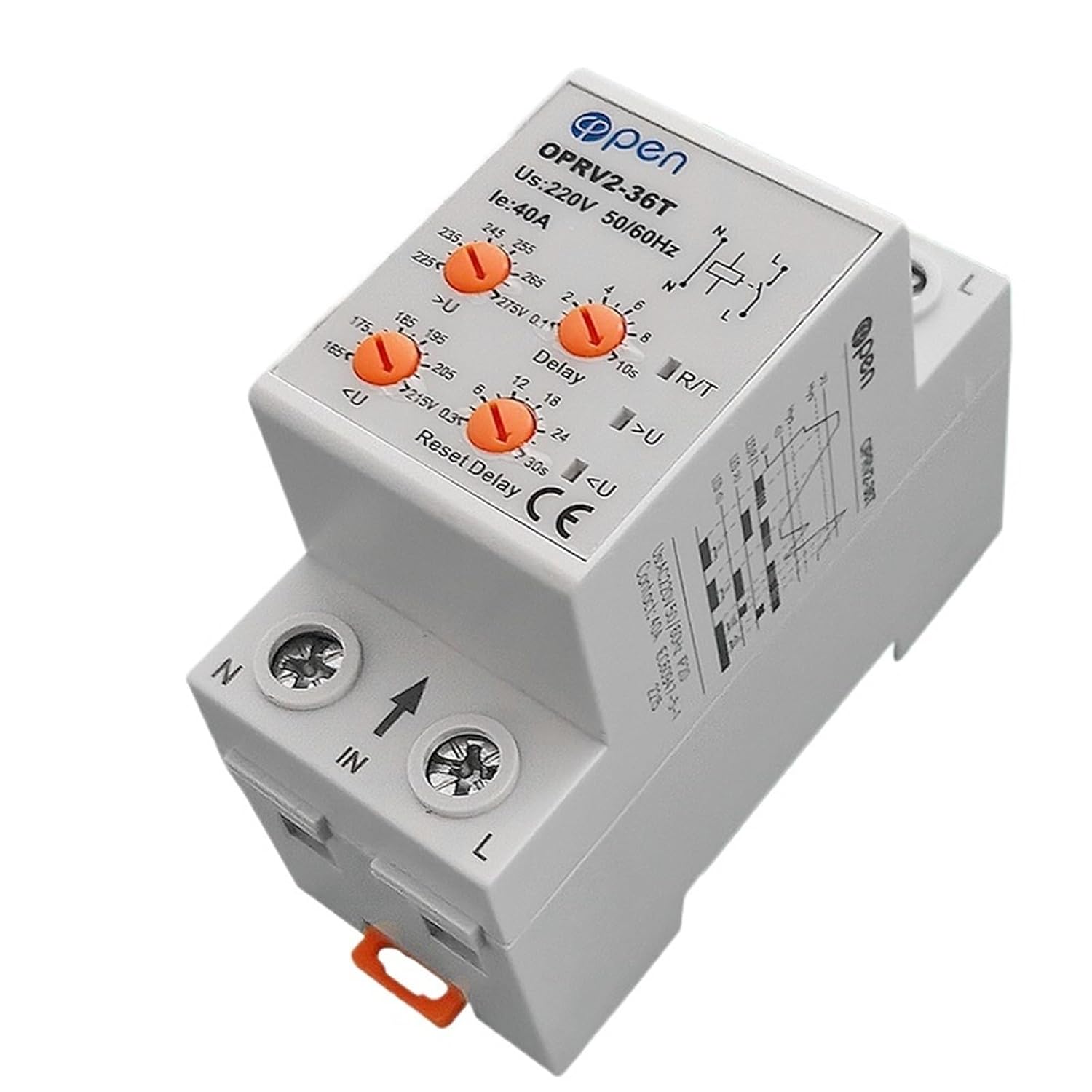

1PCS Protection Relay 40A Overvoltage and Undervoltage Control ON Off Protecting Safe Electrics for Home Commercial Industry

RelaysVoltage Protective Device Voltage Relayovervoltage and undervoltage protectionApplicationProtecting electrical device from overvoltage undervoltage damage .characteristic(1)Control supply voltage (True RMS measurement)(2)Indicating control status by LED light , more clear (3)Value with auto restart and self-resetting<;=1%(5)Measuring frequency :50-60HZ(6)35mm Din-rail mount(7)220vac / 40A(1)Overvoltage and undervoltage (2)LED light to indicate the working status<;=1%>Uknob to adjust overvoltage threshold vauleknob to adjust undervoltage threshold vauleDelaytrip delay time adjusting knob trip delayReset DelayPower-ON&reset delay time adjustingDimensionTechnical Parameters1 Rated supply voltage AC220v2}Frequence :50/60HZ(3)Overvoltage:225~265v(4)Undervoltage:165~215v(5)Tripping time delay:0.1s~10s(6)Powe-ON delay :0.3s~30s(7)IP degree protection:IP20(8)Electrical durability:100000cycles(9)Mechincal durability:100000cycles<;=1%DiagramWire connecting==========Power : ACTheory : Voltage relayProtect Feature : Sealedis_customized : noUsage : ProtectiveModel Number : OPRV2-36TVoltage : 220VCurrent : 40AFrequency : 50/60HZMounting : 35mm Din-railFunction : Over/Under voltage protect
